Overview: Docker images are made of several stacked parts called layers. Each layer holds changes from the previous one, like adding a file or running a command. This guide shows how these layers stack up and how to optimize them to make your software builds faster and smaller for real-world production use.
01. Introduction
When you start learning containerization, you might think of a Docker image as a single, static file. In reality, it is much more like a stack of transparent sheets, where each sheet represents a specific instruction in your build file. Understanding this stacking mechanism is crucial for anyone building professional applications, whether you are working with Java, Python, or MERN stack architectures. Many beginners in my classes often wonder why their builds take so long to finish. The answer almost always lies in how they have structured their commands.
If you have ever been frustrated by slow deployments or images that are several gigabytes in size, you are likely missing out on how caching works between these layers. When we teach developers in our full stack MERN course, we emphasize that the order of lines in your build file is not just syntax; it is a design choice. Getting this wrong can lead to unnecessary resource consumption, while getting it right results in faster CI/CD pipelines and smoother deployment cycles. This is the difference between a junior developer and one who is truly industry-ready.
Think of the build process as a recipe. If you add your ingredients in the wrong order, you might have to restart the entire cooking process when you realize you forgot a step. In the world of infrastructure, that "restarting" means rebuilding layers. By learning how these layers interact, you gain control over your entire delivery pipeline. It is not just about making things work; it is about making them efficient and maintainable for your future self and your teammates.
02. The Anatomy of a Layer Stack
Every time you write an instruction in your configuration file, Docker creates a new read-only layer. These layers are stacked on top of each other to create the final filesystem that your application runs on. Think of it like a base operating system at the bottom, followed by your runtime environment, and then your source code at the very top. When you run a command, it modifies the filesystem and saves the result as a new immutable unit.
This structure is highly efficient because layers are shared. If you have five different images that all start with the same base image, they only store that base layer once on your hard drive. This storage optimization is one of the primary reasons containers became the standard for modern infrastructure. However, you must be careful; every time you change a file or execute a command, that specific layer and all layers above it must be rebuilt. This is why placing rarely changing commands at the top is a standard practice in DevOps course curriculum.
Layer Caching Mechanisms
Docker uses a fingerprinting system to decide if a layer can be reused from the cache. If the command string is identical to a previous build and the underlying files haven't changed, Docker just skips the work and uses the cached version. This is incredibly fast and saves significant time during daily development cycles in a professional setting. You can observe this by running a build twice in a row; the second run should be nearly instantaneous.
However, once a layer is invalidated, all subsequent layers are invalidated too. For example, if you copy your entire source code directory before installing your dependencies, a single change to a tiny text file will force your package manager to re-download everything from scratch. This is a classic mistake that I see frequently during software testing training sessions where students struggle with long build times because their cache logic is inverted.
Placement Clients
MSME Companies in UK & US
03. Optimizing Build Performance for Engineers
Performance in containerization isn't just about speed; it is about maintainability. When your build process is clean, your images become smaller and more secure. I always tell my students to prioritize minimizing the number of layers by chaining commands together using logical operators. This prevents the creation of intermediate layers that do not need to exist in your final image. Every layer adds metadata and overhead that you really do not want in your production environment.
Consider the difference between running three separate update and install commands versus grouping them into one single logical operation. The latter creates only one layer instead of three, which reduces the total image size significantly. Below is a simple comparison to help you visualize why this architectural choice matters for real-world deployment scenarios.
| Feature | Inefficient Approach | Optimized Approach |
|---|---|---|
| Layer Count | High | Low |
| Build Speed | Slow | Fast |
| Image Size | Large | Small |
| Cache Hits | Low | High |

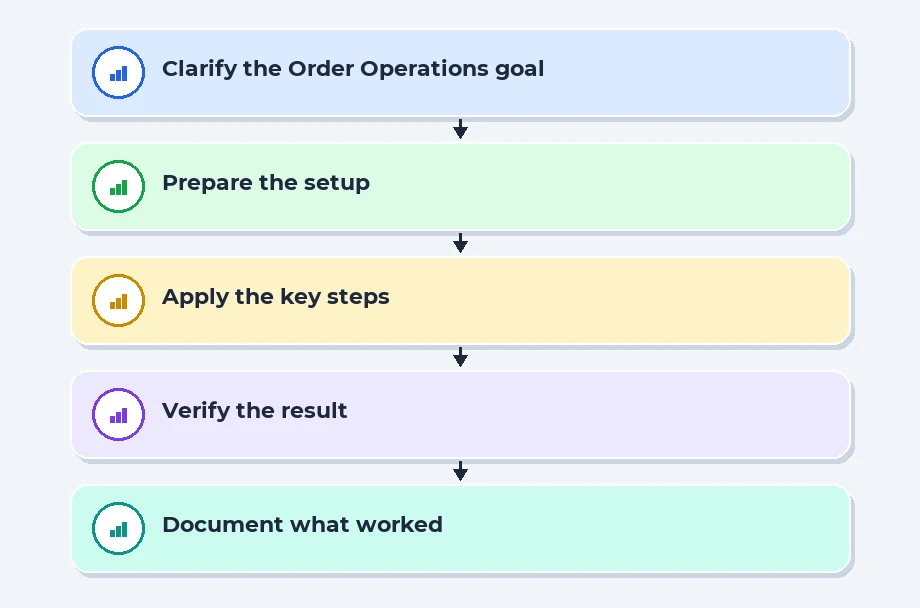

Order of Operations
Always move your most stable dependencies to the beginning of your build file. For a web development project, this means copying your package definition files first, running the install command, and only then copying your application source code. Because your package list changes much less often than your code, this setup ensures that you are almost always hitting the cache for the heavy lifting tasks.
In my experience classroom learning, students often find this counter-intuitive at first. They want to copy everything at once because it feels simpler to write. But as your project grows, that simplicity becomes a bottleneck. Training yourself to think about layer lifecycle management is a vital skill for landing roles in the Bangalore tech ecosystem where hiring managers look for candidates who understand how to write efficient, production-grade infrastructure code.
04. Common Pitfalls in Container Construction
One of the most common issues I encounter during placement preparation is the inclusion of unnecessary build tools in the final image. Many beginners leave compilers, debuggers, and temporary artifacts inside their production containers. This is not just a waste of space; it increases the attack surface of your application by providing tools that a malicious actor could use if they gained entry. Think of it like leaving a toolkit inside a safe; it provides unnecessary utility to anyone who gets past the lock.
Instead, use multi-stage builds. This technique allows you to use a temporary container to compile your code and then copy only the final, executable binary into a clean, minimal image. The result is a production image that is often 90 percent smaller than the original, making your deployments faster and safer. This is exactly the kind of practical, project-based implementation we focus on to ensure our students are ready for real-world coding exposure.
Handling Secrets and Permissions
Never bake credentials, API keys, or sensitive configuration data directly into your image layers. Even if you delete a key in a later layer, it still exists in the history of the previous layer. Anyone with access to the image registry can extract those sensitive details easily. Always inject your secrets at runtime using environment variables or dedicated secret management systems provided by cloud platforms.
Working with professional workflows means respecting security standards from day one. I encourage everyone to treat their image definitions as sensitive code. If you are ever unsure about your current build setup, feel free to reach out for career guidance or look into our mentorship programs where we can review your configurations and help you align them with industry best practices.
05. The Physics of Filesystem Mutation
When you trigger a Docker build, the daemon isn't just copying files into a folder; it is performing a complex dance of filesystem manipulation. Every single instruction in your Dockerfile, from RUN to COPY, creates a fresh read-only layer. Think of this like a stack of acetate sheets used in old-school projectors. Each sheet contains only the delta-the changes-introduced by that specific command. If you add a file in the first layer and delete it in the third, that file still exists in the final image's historical record, even if it is masked or 'white-outed' by the later layer. This is why a simple command to remove a cache directory in a separate instruction won't actually shrink your image size; the original files are baked into the previous layer permanently.
This architectural choice is the primary reason why DevOps engineers obsess over chaining commands with ampersands. By writing RUN apt-get update && apt-get install -y package, you are forcing the filesystem to finalize those changes within a single layer. If you split those into two distinct RUN instructions, the first layer captures the metadata and state of your package manager's index, and the second captures the binary installation. If that index data is thousands of lines long, it stays in your final image forever, bloat-taxing every single pull operation you perform across your infrastructure.

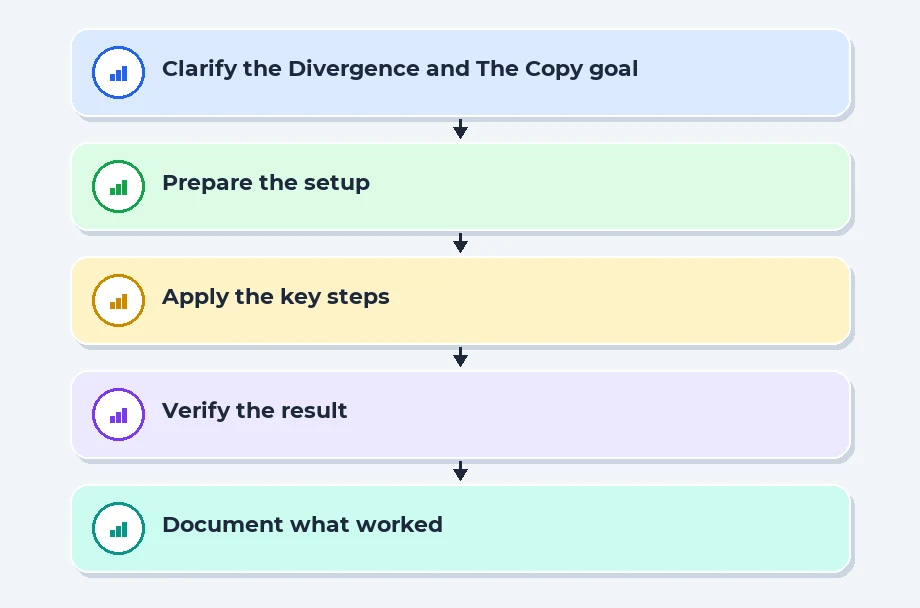

Divergence and The Copy-On-Write Mechanism
At the runtime level, Docker utilizes a Copy-on-Write (CoW) strategy to handle these static layers. When a container starts, it adds a thin, writable layer on top of your immutable image stack. If your application needs to modify a configuration file that was defined deep in the image layers, Docker doesn't reach down and alter the read-only layer. Instead, it copies the specific file up into that top writable layer, modifies it there, and presents it to your process as if it were the original.
This mechanism is vital for software engineering performance. Because the underlying layers remain pristine, hundreds of containers can share the exact same memory-mapped segments of the image. They only consume additional storage when they diverge from the base image through their own unique writes. Understanding this helps you see why keeping your immutable layers as deep and stable as possible is the secret to high-density container orchestration.
Recent Job Descriptions
06. The Physics of Layer Caching and Idempotency
Understanding how Docker builds layers isn't just about disk space; it is about mastering the speed of your feedback loop. When you run a build command, Docker treats every instruction as a potential point of divergence. If the content of your Dockerfile line hasn't changed, and the files it references remain identical, Docker simply skips the execution and grabs the result from its local cache. This is why ordering your instructions-like placing your dependency installation before your source code copy-is the most effective way to save hours of developer time over the course of a week. If you copy the entire source tree before installing your npm packages, a single line change in a CSS file invalidates every single layer that follows it, forcing a full dependency rebuild every single time.
This behavior relies on the concept of content-addressable storage. Docker calculates a checksum for the layer based on the command and the state of the files involved. If that checksum matches an existing layer in your local repository, it pulls the layer instantly. This mechanism enforces a strict form of idempotency where the build process is predictable and repeatable across machines. However, developers often trip over hidden dependencies, such as environment variables or system-level configuration files that might not be explicitly tracked by the Docker daemon. Managing these layers requires a mindset where you view the Dockerfile as a series of immutable snapshots rather than a linear script.

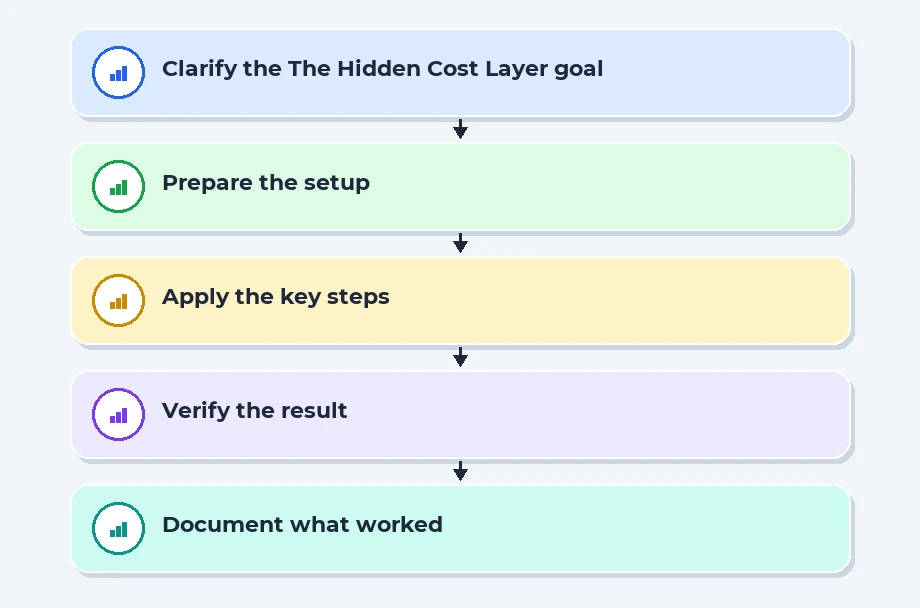

The Hidden Cost of Layer Bloat and Cleanup
While caching is your best friend, it can easily turn into a silent performance killer if you aren't careful about what you leave behind. Every time you run a command like 'apt-get install' or 'pip install' inside a layer, Docker captures the entire state of the filesystem at that moment. If you download a massive temporary installation file and then delete it in a subsequent line, that file remains physically present in the underlying image layer. It is essentially hidden from view, but it occupies disk space forever, contributing to image bloat that slows down your CI/CD pipelines and deployment times.
To solve this, experienced engineers chain these operations together using the ampersand syntax. By combining the installation, the necessary configuration, and the cleanup of temporary caches into a single 'RUN' instruction, you ensure that the resulting layer contains only the final, clean state you need. This technique creates a much smaller, more efficient image, and it prevents those discarded temp files from ever becoming part of your final distribution artifact. It is a simple shift in syntax that fundamentally changes how your container images perform in production environments.
07. References
Docker documentation - Volumes: Docker documentation - Volumes
Docker documentation - Multi-stage builds: Docker documentation - Multi-stage builds
Docker documentation - Dockerfile reference: Docker documentation - Dockerfile reference
Docker documentation - Best practices: Docker documentation - Best practices
08. Conclusion
Mastering Docker layers is about changing how you view your code. It is not just about putting files into a container; it is about building a sequence of events that the system can optimize for you. By keeping your instructions clean, grouping your commands, and utilizing multi-stage builds, you set yourself apart as a developer who understands the underlying mechanics of modern software infrastructure. Keep experimenting with your own builds, and you will soon find that these habits become second nature, helping you succeed in your career and your next technical interview. Scoop Labs is committed to helping you bridge the gap between theory and real-world implementation.
